GUIDE RAIL CVR10
![- Guide Rail CVR10](/userfiles/catalog/product/cvr10.jpg)
![](/userfiles/catalog/product_thumbnail/cvr10.jpg)
![](/userfiles/catalog/product_thumbnail/cvr10_1.jpg)
![](/userfiles/catalog/product_thumbnail/cvr10_2.jpg)
![](/userfiles/catalog/product_thumbnail/cvr10_3.jpg)
Guide Rail CVR10cvr10

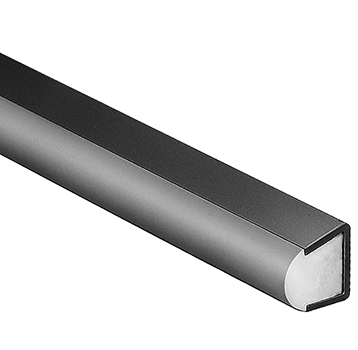

Conveyor guide rail No. CVR-10, 0.67" wide base, 1/2" round top, white uhmw insert with Stainless Steel frame 2mm thick (overall thickness 0.72" +/-0.03")
Stainless steel sheet 0.08" thick gives a higher load strength to the rail, reducing the deflection caused by the load. Minimum bend radius is 5.71". Although guide rails can be used in a wide range of applications, certain styles are designed for specific conditions. Linear expansion coefficient: 4 x 10-5 oC-1 2.2 x 10-5 oF-1
In stock
The product has been added successfully!
DOCUMENTATION
![Icone de fichier](/skins/default/media/icons/file_extensions/file_extension_stp.png)
Guide Rail CVR10
Drawing STP 3D
Published on 2018
![Icone de fichier](/skins/default/media/icons/file_extensions/file_extension_pdf.png)
Guide Rail CVR10
Specs
Published on 2016
