SELF ALIGNING BEARINGS, 3 BOLT FLANGE SERIES
Self Aligning Bearings, 3 Bolt Flange series3_bolt_flange

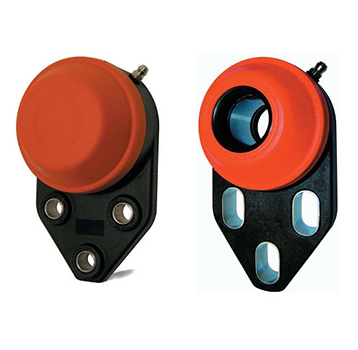

Three Bolt Flange Mounted Bearing Unit Waterproof housing Grub screws PA FV polyamide housing High mechanical and heat resistance. Proof to dust, humidity, washouts, steam, average aggressive chemical agents.
Material
- Housing in reinforced polyamide PA FV resin (black)
- Protection cover in polypropylene PP (orange)
- Seal and O-Ring in NBR rubber (black)
- Ball type nickel plated brass greasing nipple
- Reinforcing bushings on mounting holes
- washers in stainless steel AISI 304
OPTIONS AVAILABLE
| SKU | Hole patern | Cover | Material | Shaft dia. D | a | b | c | CAD | Add |
|---|---|---|---|---|---|---|---|---|---|
| 691422n | Type 3 | Close/Fermé | PA black/noir | 1" | 4.89 | 2.71 | 3.54 | DWG STP IGS |
|
| 691442n | Type 3 | Open/Ouvert | PA black/noir | 1" | 4.89 | 2.71 | 3.54 | DWG STP IGS |
|
| 691432 | Type 1 | Close/Fermé | PA black/noir | 1-1/4" | 5.46 | 3.2 | 3.85 | DWG STP IGS |
|
| 691452 | Type 1 | Open/Ouvert | PA black/noir | 1-1/4" | 5.46 | 3.2 | 3.85 | DWG STP IGS |
|
| 606233 | Type 2 | Close/Fermé | PA black/noir | 1-1/2" | 6.46 | 3.94 | 4.49 | DWG STP IGS |
|
| 606243 | Type 2 | Open/Ouvert | PA black/noir | 1-1/2" | 6.46 | 3.94 | 4.49 | DWG STP IGS |
|
*CAD Drawing files available in 2D and 3D format
DOCUMENTATION
Self Aligning Bearings, 3 Bolt Flange series
Drawing STP 3D
Published on 2016
Self Aligning Bearings, 3 Bolt Flange series
Drawing STP 3D
Published on 2016
Self Aligning Bearings, 3 Bolt Flange series
Drawing STP 3D
Published on 2016
Self Aligning Bearings, 3 Bolt Flange series
Drawing STP 3D
Published on 2016
Self Aligning Bearings, 3 Bolt Flange series
Specs
Published on 2016
